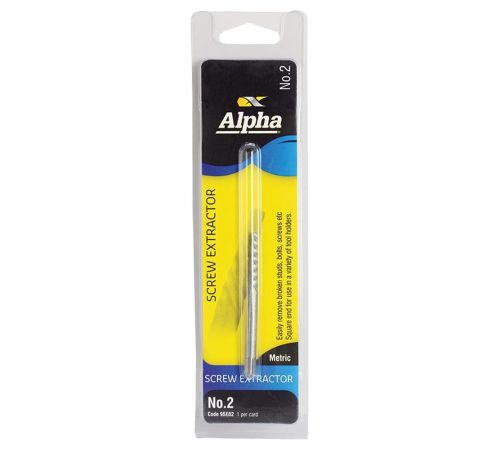

ALPHA 9SE02 SCREW EXTRACTOR #2 CARDED (4.8MM) - COBALT SERIES
Click & Collect OR in-store Pickup available
ALPHA 9SE02 SCREW EXTRACTOR #2 CARDED (4.8MM) - COBALT SERIES
Directions for use:
Features:
Technical Specifications:
Directions for use:
- If possible, grind or flatten the head of the damaged bolt or screw.
- With a heavy hammer and centre punch, mark the centre of the bolt or screw; this will prevent the pilot drill wandering.
- The extractor requires a pilot hole, start with a small Alpha left handed drill bit (e.g. 5/64").
- If required, drill the hole out larger. It is best to use a left-hand drill for this step, as this may be enough to remove the stud without a screw extractor.
- Select the correct size screw extractor for the hole.
- With a tap wrench, turn the screw extractor into the hole in an anti-clockwise direction. The reverse threads force the extractor into the hole until the broken bolt or stud is forced to turn. Continue turning until the stud is removed.
Features:
- Reverse Tapered Cutting Screw Thread
- Square Head for use with Tapping Handles
- 6 Common sizes available
Technical Specifications:
- Suits pilot drill: 3.0mm, 7/64"
- Suits bold thread diameter: 5.5-6.5mm, 7/32-1/4"
- Diameter (mm): SIZE
- Material: HSS
- Longest side (mm): 180.00
- Median side (mm): 50.00
- Shortest side (mm): 15.00
- Weight (gr): 20.00
Brand | Alpha |
---|
