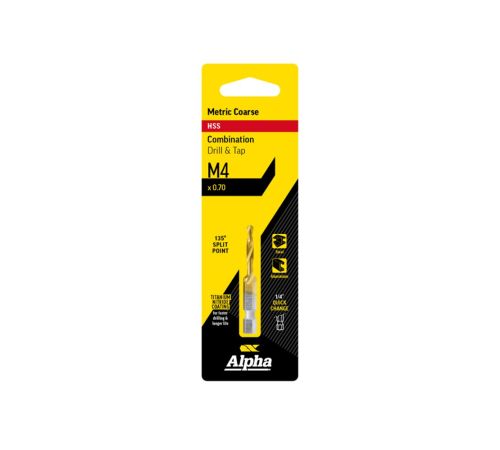

ALPHA DTMC040 COMBINATION DRILL & TAP M4 X 0.7 HSS TIN COATED CARDED

Drill, tap & deburr ferrous & non-ferrous metals & plastics in one operation up to 3.5mm Quickly & easily produce clean, accurate threaded holes.

Instructions: Drill hole using medium pressure. Slow drill speed for tapping. Continue drilling after tapping to deburr the hole. Reverse tap slowly out of hole to avoid cross threading. Cutting fluid recommended when tapping metals.

• Titanium nitride coating reduces heat and increases lubricity for extended life

• Fully ground M2 HSS raw material for extended life

• 135° split point cuts faster and reduces wandering

• Working thickness: 3.5mm

• Shank: 1/4" quick change

• Suits: Cordless drills & impact drivers

• Recommended RPM: 500 600

• Type of Measure: MC

• Angle (deg): 135

• Diameter (mm): 4

• Flute Length (mm): 25

• Material: HSS

• OAL (mm): 55

• Pitch (mm): 0.7

• Shank Size (in): 1/4

• Longest side (mm): 152.00

• Median side (mm): 46.00

• Shortest side (mm): 7.00

• Weight (gr): 15.00

---
