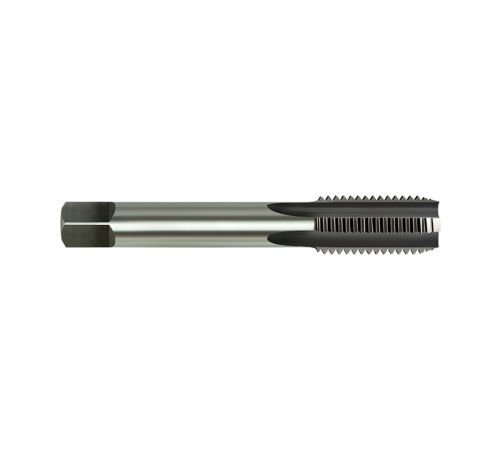

ALPHA MCCB080 CARBON TAP MC BOTTOMING- 8X1.25

BOTTOMING taps have a lead of two threads and are used when tapping blind holes. Usually preceded by a taper or intermediate tap. Alpha bottoming taps can beidentified by their plain shaft, they have no rings on the shaft near the driving square.

• Alpha Carbon Hand Taps are precision manufactured in Europe to ISO529 standards.

• Carbon Hand Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.

• 2N Tolerance for optimum thread fit that balances fastener performance, manufacturing, economy and convenience.

• Suitable for use in Steel, Aluminium, Copper, Brass etc.

• Type of Measure: MC

• Diameter (mm): 8

• Drill Size (mm): 6.8

• Head Type: Bottoming

• Material: Carbon

• OAL (mm): 72

• Pitch (mm): 1.25

• Longest side (mm): 92.00

• Median side (mm): 15.00

• Shortest side (mm): 15.00

• Weight (gr): 25.00

---
