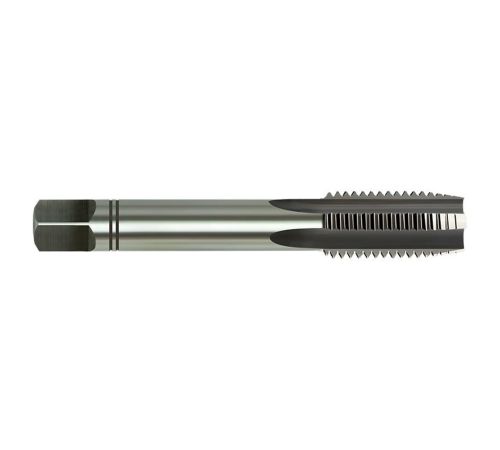

ALPHA MFCI140125 CARBON TAP SP INTERMEDIATE-14X1.25
Click & Collect OR in-store Pickup available
ALPHA MFCI140125 CARBON TAP SP INTERMEDIATE-14X1.25
Features:
Technical Specifications:
INTERMEDIATE taps have a lead of four threads and are used in most general purpose applications. Alpha Intermediate taps can be identified by the two rings on the shaft near the driving square.
Features:
- Alpha Carbon Hand Taps are precision manufactured in Europe to ISO529 standards.
- Carbon Hand Taps ararbon Hand Tape general purpose taps suitable for hand and machine operation, and are suitable for production use.
- 2N Tolerance for optimum thread fit that balances fastener performance, manufacturing, economy and convenience.
- Suitable for use in Steel, Aluminium, Copper, Brass etc.
Technical Specifications:
- Type of Measure: MF
- Diameter (mm): 14
- Drill Size (mm): 12.8
- Head Type: Intermediate
- Material: Carbon
- OAL (mm): 95
- Pitch (mm): 1.25
- Longest side (mm): 95.00
- Median side (mm): 20.00
- Shortest side (mm): 20.00
- Weight (gr): 65.00
Brand | Alpha |
---|
