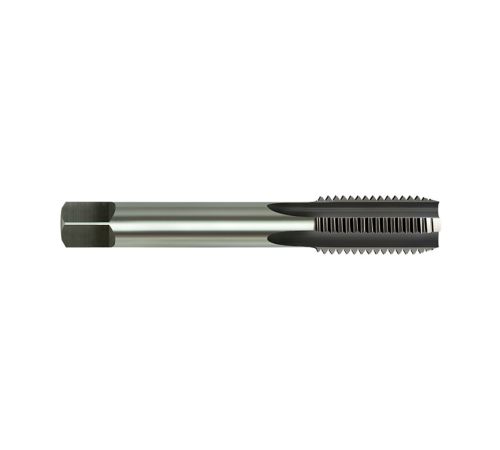

ALPHA UNCCB716 CARBON TAP UNC BOTTOMING-7/16X14
Click & Collect OR in-store Pickup available
ALPHA UNCCB716 CARBON TAP UNC BOTTOMING-7/16X14
Features:
Technical Specifications:
BOTTOMING taps have a lead of two threads and are used when tapping blind holes. Usually preceded by a taper or intermediate tap. Alpha bottoming taps can beidentified by their plain shaft, they have no rings on the shaft near the driving square.
Features:
- Alpha Carbon Hand Taps are precision manufactured in Europe to ISO529 standards.
- Carbon Hand Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.
- 2N Tolerance for optimum thread fit that balances fastener performance, manufacturing, economy and convenience.
- Suitable for use in Steel, Aluminium, Copper, Brass etc.
Technical Specifications:
- Type of Measure: UNC
- Diameter (in): 7/16
- Drill Size (mm): 9.4
- Head Type: Bottoming
- Material: Carbon
- OAL (mm): 85
- TPI: 14
- Longest side (mm): 115.00
- Median side (mm): 15.00
- Shortest side (mm): 15.00
- Weight (gr): 35.00
Brand | Alpha |
---|
