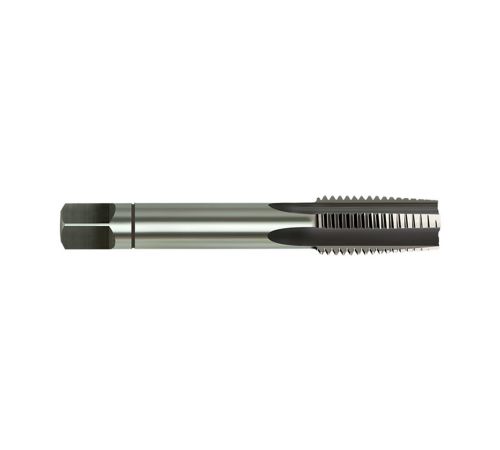

ALPHA UNCCT916 CARBON TAP UNC TAPER-9/16X12
Click & Collect OR in-store Pickup available
ALPHA UNCCT916 CARBON TAP UNC TAPER-9/16X12
Features:
Technical Specifications:
TAPER taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes. Alpha Taper taps can be identified by the single ring onthe shaft near the driving square.
Features:
- Alpha Carbon Hand Taps are precision manufactured in Europe to ISO529 standards.
- Carbon Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.
- 2N Tolerance for optimum thread fit that balances fastener performance, manufacturing, economy and convenience.
- Suitable for use in Steel, Aluminium, Copper, Brass etc.
Technical Specifications:
- Type of Measure: UNC
- Diameter (in): 9/16
- Drill Size (mm): 12.2
- Head Type: Taper
- Material: Carbon
- OAL (mm): 95
- TPI: 12
- Longest side (mm): 100.00
- Median side (mm): 20.00
- Shortest side (mm): 20.00
- Weight (gr): 70.00
Brand | Alpha |
---|
