ALPHA UNFCT916 CARBON TAP UNF TAPER-9/16X18

SKU
UNFCT916
Special Price $25.95 Regular Price $36.45
In stock


Click & Collect OR in-store Pickup available
Sale

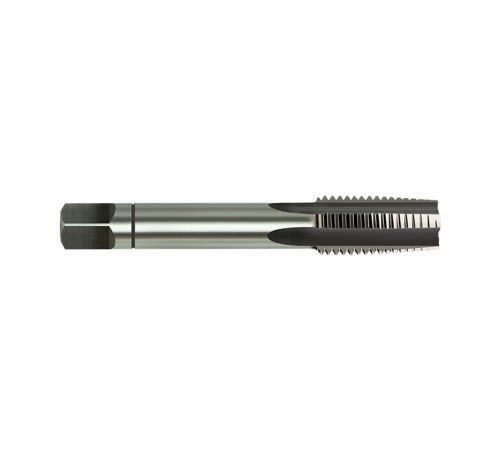

ALPHA UNFCT916 CARBON TAP UNF TAPER-9/16X18

TAPER taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes. Alpha Taper taps can be identified by the single ringon the shaft near the driving square.


Features:
  • Alpha Carbon Hand Taps are precision manufactured in Europe to ISO529 standards.
  • Carbon Hand Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.
  • 2N Tolerance for optimum thread fit that balances fastener performance, manufacturing, economy and convenience.
  • Suitable for use in Steel, Aluminium, Copper, Brass etc.

Technical Specifications:
  • Type of Measure: UNF
  • Diameter (in): 9/16
  • Drill Size (mm): 12.9
  • Head Type: Taper
  • Material: Carbon
  • OAL (mm): 95
  • TPI: 18
  • Longest side (mm): 90.00
  • Median side (mm): 25.00
  • Shortest side (mm): 20.00
  • Weight (gr): 70.00


Product Information

Brand Alpha
