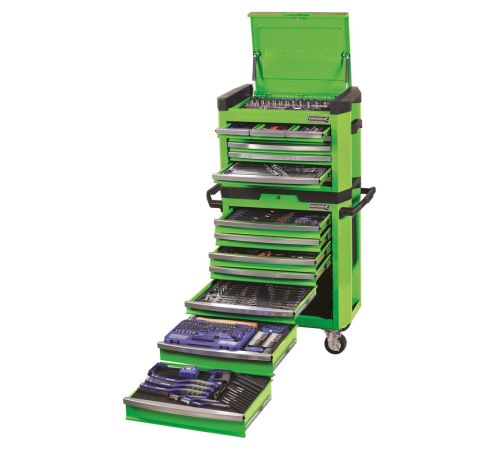

KINCROME K1500G CONTOUR TOOL WORKSHOP 472 PIECE 1/4, 3/8 & 1/2'' DRIVE
Click & Collect OR in-store Pickup available
The CONTOUR® range of Tool Kits, Chests and Trolleys is our premium level range, developed for those looking for trade quality tools
and features. CONTOUR® comes loaded with premium features for apprentices and professionals, combined with modern styling, offering you the very best that KINCROME has to offer. Designed in Australia by KINCROME, the CONTOUR®
range features a sleek contoured design, available in a variety of gloss colours with a UV protected powder coated finish. CONTOUR® storage comes standard with a range of premium features, including; the chamfered Kincrome
embossed side panels, ’Automatic Drawer Retention System (ADRS)’ locking system, heavy duty ‘Big Grip’ side carry handles and a contoured trolley handle, side folding work trays, MDF worktop and four swivel heavy duty
polyurethane castors for easy manoeuvrability.
CONTOUR® offers a complete range of carts, chests, trolleys and kits to suit every need, from; 26” standard, 28” & 29” extra deep, 42” extra wide and 60” super wide.
CONTOUR® is fully modular and customisable, offering the flexibility to build your own premium workshop, the way you want.
Contents:
TOP TRAY - EVA60T - 89 Piece CONTOUR® Socket & Accessories EVA Tray - 1/4", 3/8" & 1/2" Drive
Metric Sizes:
- 9 Sockets 1/4" Square Drive: 4, 5, 6, 7, 8, 9, 10, 11, 12mm
- 10 Sockets 3/8" Square Drive: 9, 10, 11, 12, 13, 14, 16, 17, 18, 19mm
- 19 Sockets 1/2" Square Drive: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 27, 28, 30, 32mm
Imperial Sizes:
- 9 Sockets 1/4" Square Drive: 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16, 1/2"
- 7 Sockets 3/8" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
- 15 Sockets 1/2" Square Drive: 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1", 1.1/16, 1.1/8, 1.3/16, 1.1/4"
13 Socket Accessories:
1/4" Square Drive:
- Ratchet Handle Reversible Male
- Spinner Handle 150mm (6")
- 1/4 Male x 3/8" Female Adaptor
- Extension 150 mm (6")
3/8" Square Drive:
- Ratchet Handle Reversible Male
- Extension 75mm (3")
- Extension 150mm (6")
- 3/8 Female x 1/2" Male Adaptor
1/2" Square Drive:
- Ratchet Handle Reversible Male
- Universal Joint
- Extension 125mm (5")
- Extension 250 mm (10")
- Flex Handle 375mm (15")
- Sliding T-Handle 250mm (10")
- 1/2" Female x 3/8" Male Adaptor
2 Spark Plug Sockets:
- 16mm (5/8) x 3/8" Square Drive
- 21mm (13/16) x 1/2" Square Drive
- EVA Size - 570mm x 460mm x30mm
DRAWER 1 - EVA63T - 4 Piece CONTOUR® Pliers & Cutter EVA Tray
- Combination Pliers 200mm (8")
- Diagonal Cutting Pliers 200mm (8")
- Long Nose Pliers 200mm (8")
- Multi-Grip Pliers 250mm(10")
- EVA Size - 160mm x 395mm x 30mm
DRAWER 2 - EVA61T - 36 Piece CONTOUR® Hex & TORX® Key EVA Tray
- Ball Point Hex Key Set Long Series 9 Piece AF: 1/16" x 14 x 90mm, 3/16" x 28 x 160mm, 5/64" x 16 x 100mm, 1/4" x 32 x 180mm, 3/32" x 18 x 112mm, 5/16" x 36 x 200mm, 1/8" x 20 x 126mm, 3/8" x 40 x 224mm, 5/32" x 25 x 140mm
- Ball Point Hex Key Set Long Series 9 Piece Metric: 1.5 x 14 x 90mm, 5.0 x 28 x 160mm, 2.0 x 16 x 100mm, 6.0 x 32 x 180mm, 2.5 x 18 x 112mm, 8.0 x 36 x 200mm, 3.0 x 20 x 126mm, 10.0 x 40 x 224mm, 4.0 x 25 x 140mm
- Tamperproof TORX® Set Long Series 9 Piece: T10H x 14 x 90mm, T30H x 28 x 160mm, T15H x 16 x 100mm, T40H x 32x 180mm, T20H x 18 x 112mm, T45H x 36 x 200mm, T25H x 20 x 126mm, T50H x 40 x 224mm, T27H x 25 x 140mm
- TORX® Set Long Series 9 Piece: T10 x 20 x 90mm, T15 x 25 x 100mm, T20 x 27 x 111mm, T25 x 30 x 125mm, T27 x 33 x 143mm, T30 x 37 x 166mm, T40 x 39 x 190mm, T45 x 44 x 210mm, T50 x 50 x 235mm
- EVA Size - 160mm x 395mm x 30mm
DRAWER 3 - EVA62T - 5 Piece CONTOUR® 250mm File Set EVA Tray
- Hand File Bastard Cut - 10" (250mm)
- Hand File 2nd Cut - 10" (250mm)
- Half Round File Bastard Cut - 10" (250mm)
- Square File Bastard Cut - 10" (250mm)
- Round File Bastard Cut - 10" (250mm)
- EVA Size - 160mm x 395mm x 30mm
DRAWER 4 - EVA64T - 30 Piece Contour Combination Spanner EVA Tray - Mirror Polish
- 17 Metric Combination Spanners: 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24mm
- 13 Imperial Combination Spanners: 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1"
- EVA Size - 540mm x 395mm x 30mm
DRAWER 5 - EVA66T - 72 Piece CONTOUR® Screwdrivers & Fastening EVA Tray
13 Piece TORQUEMASTER® Screwdriver Set:
- 8 Screwdrivers - Blade: 3mm x 75mm, 4mm x 100mm, 5mm x 100mm, 5mm x 150mm, 6mm x 100mm, 8mm x 150mm, 6mm x 38mm, 9.5mm x 250mm
- 5 Screwdrivers - Phillips: No.0 x 75mm, No.1 x 75mm, No.2 x 100mm, No.2 x 38mm, No.3 x 150mm
14 Piece Impact Screwdriver Set 1/2" Drive:
- 1/2" Drive Impact Screwdriver
- 4 Phillips Impact Bits: No. 1, 2, 3, 4
- 5 Blade Impact Bits: 5, 6, 8, 10, 12mm
- 4 Hex Impact Bits: 4, 5, 6, 8mm
- Magnetic Bit Driver
- Security Bit & Holder Set 33 Piece 1/4" Hex Drive
9 Piece Precision Screwdriver:
- 1 Interchangeable Precision Screwdriver Handle
8 x 110mm Double End Precision Bits:
- Ph000 x Ph0, Ph00 x Ph1
- Blade 1.0 x Blade 1.4mm
- Blade 1.2 x Blade 2.4mm
- Blade 2.0 x Blade 3.0mm
- T5 x T8, T6 x T9, T7 x T10
- Magnetiser & Demagnetiser
- Magnetic Telescopic Pick-up Tool Length: 470mm (18.1/2")
- EVA Size - 540mm x 395mm x 30mm
DRAWER 6 - EVA67T - 13 Piece CONTOUR® Adjustable Wrenches & Pliers EVA Tray
- Locking Pliers Curved Jaw 250mm (10")
- Hand Riveter 250mm (10")
- Tin Snip Pliers Straight Cut 260mm (10")
- Automatic Wire Stripper with Crimper
- Adjustable Wrench 150mm (6")
- Adjustable Wrench 200mm (8")
- Adjustable Wrench 250mm (10")
- Adjustable Wrench 300mm (12")
- 5 Piece Circlip Pliers Set Combination (Internal / External) 175mm
- EVA Size - 540mm x 395mm x 30mm
DRAWER 7 - EVA65T - 43 Piece CONTOUR® Gear Spanner & Go Through Socket EVA Tray
- 8 Gear Spanners Piece: Imperial Sizes: 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4"
- 12 Gear Spanners Set: Metric Sizes: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19mm
- 9 Multi Drive Go Through Sockets: 10, 11, 12, 13, 14, 15, 16, 17, 19mm
4 Socket Accessories:
- 1 Flex Locking Reverse Go Through Ratchet Handle
- 1 Go Through Extension 73mm (3")
- 2 Quick Release Adaptors 3/8"(M), 1/2"(M)
10 Piece Mini Ratchet Set:
- 1 Ratchet Reversible - Hex Drive
- 2 Blade Bits - 1/4", 3/16"
- 3 Phillips Bits - No1, No2, No3
- 4 TORX® Bits - T10, T15, T20, T25
- EVA Size - 540mm x 395mm x 30mm
DRAWER 8
- Universal Bit Set 128 Piece
- 6 x Blade Bits - 1/8", 5/32", 3/16", 7/32", 1/4", 9/32"
- 9 x Metric Blade Bits - 3, 4, 4.5, 5, 5.5, 6, 6.5, 7, 8mm
- 5 x Phillips Bits - No. 0, 1, 2, 3, 4
- 4 x Pozi Bits - No. 0, 1, 2, 3,
- 12 x TORX® Bits - T6, T7, T8, T10, T15, T20, T25, T27, T30, T40, T45, T50
- 11 x Tamperproof TORX® Bits - T6H, T7H, T8H, T9H, T10H, T15H, T20H, T25H, T27H, T30H, T40H
- 8 x Imperial Hex Bits - 5/64", 3/32", 7/64", 1/8", 5/32", 3/16", 7/32", 1/4"
- 10 x Metric Hex Bits - 1.5, 2, 2.5, 3, 4, 5, 5.5, 6, 8, 10mm
- 12 x Imperial Tamperproof Hex Bits - 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 3/8"
- 6 x Metric Tamperproof Hex Bits - 2, 2.5, 3, 4, 5, 6mm
- 5 x Imperial Ball Point Hex Bits - 1/8", 5/32", 3/16", 7/32", 1/4"
- 6 x Metric Ball Point Hex Bits - 2.5, 3, 4, 5, 5.5, 6mm
- 3 x Spline Bits - M5, M6, M8
- 3 x Clutch Bits - 5/32", 3/16", 1/4"
- 4 x Spanner Bits - 4, 6, 8, 10
- 4 x Robertson Bits - S0, S1, S2, S3
- 4 x Tri Wing Bits - No.1, No. 2, No. 3, No. 4
- 3 x Offset Phillips (Torq) bits - No. 6, No. 8, No. 10
- 3 x Imperial Nut Driver - 1/4", 5/16", 3/8"
- 3 x Metric Nut Drivers - 6, 8, 10mm
- 2 x Nut Driver Adaptors - 25mm, 50mm
- 1 x Straight Magnetic Driver Handle
- 1 x T-Handle Magnetic Driver Handle
- 1 x Wing Nut (Hook Driver)
- 1 x Quick Release Coupler
- 1 x Bit Adaptor
Tamperproof TORX® Set on Rail 11 Piece 1/4" & 3/8" Square Drive:
- 1/4" Square Drive: T-10, T-15, T-20, T-25, T-27, T-30
- 3/8" Square Drive: T-40, T-45, T-50, T-55, T-60
TORX® Socket Set on Rail 11 Piece 1/4" & 3/8" Square Drive On:
- 1/4" Square Drive: T-10, T-15, T-20, T-25, T-27, T-30
- 3/8" Square Drive: T-40, T-45, T-50, T-55, T-60
Screw Extractor Set 5 Piece:
- 3 - 6mm - 1/8" - 1/4"
- 6 - 8mm - 1/4" - 5/16"
- 8 - 11mm - 5/16" - 7/16"
- 11 - 14mm - 7/16" - 9/16"
- 14 - 18mm - 9/16" - 3/4"
- Folding Lock Back Utility Knife 150mm
- 10 Pack Spare Knife Blades
- Ball Pein Hammer Hickory Shaft 16oz (454gm)
DRAWER 9
- 3 Piece Wire Brush Set (Small) Nylon, Brass & Stainless Steel
- 3 Piece Wire Brush Set (Large) Nylon, Brass & Stainless Steel
12 Piece Punch & Chisel Set:
- 3 Cold Chisel: 16mm, 19mm, 25mm
- 4 Pin Punches: 2.5mm, 4.0mm, 5.0mm 6.5mm
- 1 Centre Punch: 5mm
- 1 Drift Punch: 5mm
Technical Specifications:
- Drawers: 15
- Size: 26"
- Tray Type: EVA
- Tool Chest Measurements: 745 x 475 x 485MM
- Tool Trolley Measurements: 745 x 475 x 940MM
- Castor Size: 5" x 2"
- Finish: UV Stabilised Powder Coat
- Material: Heavy Gauge Steel
Brand | Kincrome |
---|
