MACNAUGHT HP-01 "LITRE-STROKE"MANUAL FUEL PUMP

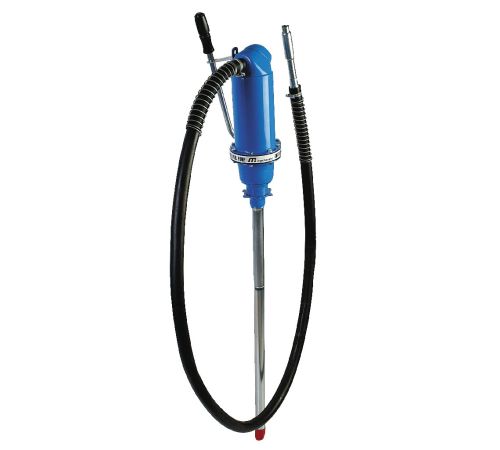

MACNAUGHT HP-01 LITRESTROKE LEVER ACTION FUEL PUMP

The LITRESTROKE™ is a hand operated, lever action action piston pump for dispensing diesel, kerosene, ULP and light oils (up to SAE30) from 60L - 205L drums or tanks.The LITRESTROKE™ delivers 1L per stroke and is able to achieve flow rates of up to 40L/min which makes it suitable for most common fuel transfer applications. Includes 2.4m anti-static hose, ULP/diesel nozzle and an in-built nozzle holder to prevent spillage.The LITRESTROKE™ is also suitable for users who either cannot use an electric fuel pump for safety reasons or do not have access to power in remote locations.

Features:

• Delivers 1L per stroke - Able to achieve flow rates up to 40L/min

• 2.4m anti-static rubber hose - Safely transfer gasoline and kerosene

• HNU Fuel Nozzle - Suitable for transferring ULP

• 1 metre two piece suction tube - Allows length of suction tube to be adjusted to accommodate different height drums

• Built-in 2" sliding bung adaptor - Suits different height drums from 60L - 205L

• Built-in nozzle holder - Allows nozzle to be fixed in non-siphoning position

• Lockable handle - For added security when pump is unattended

• Lever action - Easy to operate

• Anti-kink springs - Prevents hose from restricting fluid delivery

• Fully repairable and robust steel construction - Provides longer service life

• Optional (HA-01) 10 micron fuel filter available - For extra protection in fuel deliveries

Specifications:

• Suitable for 60L - 205L drums

• Delivers 1L per stroke (Up to 40L/min)

• 2.4m anti-static rubber delivery hose

• Suitable for use with petrol, diesel, kerosene and lubricating oils up to SAE 30

• Wetted components: Steel, acetal, zinc, Nylon

Includes:

• LITRESTROKE™ pump

• 2.4m anti-static rubber delivery hose

• HNU Fuel Nozzle

• 1 metre two piece suction tube

• Built-in 2" sliding bung adaptor

Warranty:

10 Years Macnaught warranty*
