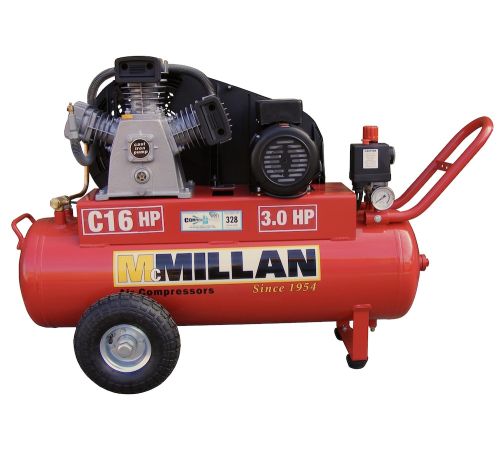

MCMILLAN C16-HP C SERIES - 240V 14.5CFM 3.0HP 73LTR
Click & Collect OR in-store Pickup available
MCMILLAN C16-HP C SERIES - 240V 14.5CFM 3.0HP 73LTR
Features:
Warranty:
Technical Specifications:
Displacement:
Free Air Delivery:
Built in Australia. 2 stage “high pressure” pump.
For applications such as truck tyre fitting, bead blasting & inflation, manufacturing and much
more.
Features:
- Rated to AS4637.
- Heavy duty “close grain” cast iron pump.
- Fully balanced flywheel with large cooling blades.
- Supported by TECO National Service Network.
- 2 x regulated outlets.
- Guarding meets Occupational Heath & Safety Standards.
- 2 stage, up to 160psi for high pressure applications.
- Featuring highly efficient reed valves.
- TECO motor with overload protection
- Capacitor start/Capacitor run.
- Filter/regulator included.
- 1 x unregulated high pressure tank outlet.
- Tank meets Australian Standard AS1210.
- Full range of spare parts available.
- Dual control option available for all models.**
Warranty:
- 5 years on pump*
- 5 years on tank*
- 1 year on motor & fittings*
Technical Specifications:
Displacement:
- CFM: 14.5
- L/min: 410
Free Air Delivery:
- CFM: 11.6
- L/min: 328
- Motor: 3.0HP
- Tank: 73L
- Power Supply: 15A
- Max. Pressure: 160psi
- Cylinders: W-Triple
- Weight: 98kg
- Width: 480mm
- Length: 1100mm
- Height: 820mm
Brand | Mcmillan Compressors |
---|
