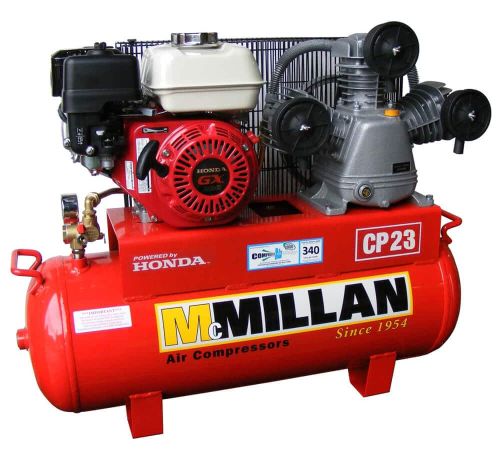

MCMILLAN CP23-S UTE PACK SERIES - 240V/PETROL/DIESEL 22.5CFM 6.5HP 60L
Click & Collect OR in-store Pickup available
MCMLLAN CP23-S UTE PACK SERIES - 240V/PETROL/DIESEL 22.5CFM 6.5HP 60L
Built in Australia.
Featuring the world famous ABAC pump, as well as cast iron pump options, coupled with Honda petrol engines gives us a range of UTE style compressors that provides the quality & reliability required in this portable market.
Features:
Warranty:
NEW Stationary UTE mount model (CP23-S) is also available with ABAC upright pump option.
Technical Specifications:
Displacement:
Free Air Delivery:
Built in Australia.
Featuring the world famous ABAC pump, as well as cast iron pump options, coupled with Honda petrol engines gives us a range of UTE style compressors that provides the quality & reliability required in this portable market.
Features:
- Rated to AS4637.
- Two stage, 160psi on high pressure models.
- Auto idle control.
- Increase fuel efficiency.
- Increase in compressor life.
- Reduction in noise and temperature.
- Cooler pump operation.
- Cast iron cylinder and crankshaft.
- Honda petrol engine.
- Oil alert engine shut down.
- Tanks meet Australian Standard AS1210.
- Honda & TECO National Service Network. CP 20-S
Warranty:
- 3 years on pump, tank & fittings. (excluding pump to suit AFP70 – 1 year)
- 3 years on Honda engine.
- 1 year on TECO electric motor.
NEW Stationary UTE mount model (CP23-S) is also available with ABAC upright pump option.
Technical Specifications:
Displacement:
- CFM: 22.5
- L/min: 636
Free Air Delivery:
- CFM: 15.2
- L/min: 430
- Motor: 6.5HP
- Tank: 60L
- Pump Model: LB 40
- Cylinders/Stages: 3/1 Stage
- Max Pressure: 130psi
- Weight: 91kg
- Width: 400mm
- Length: 950mm
- Height: 800mm
Brand | Mcmillan Compressors |
---|
