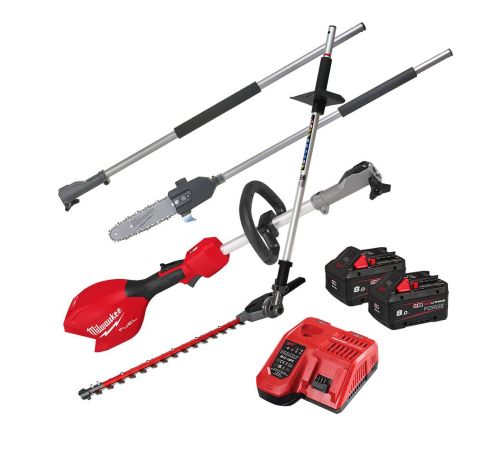

MILWAUKEE M18FOPHPP3A2802F M18 FUEL QUIK-LOK POWER HEAD PACK 3A2

• 1 x M18 FOPH2 M18 FUELTM QUIK-LOK™ Outdoor Power Head

• 1 x M18 FOPHCSA M18 FUEL™ QUIK-LOK™ 10" (254 mm) Pole Saw Attachment

• 1 x M18 FOPH-HTA M18 FUEL™ QUIK-LOK™ Articulating Hedge Trimmer Attachment

• 1 x M18 FOPH-EXA QUIK-LOK™ Extension Attachment

• 1 x 10" (254 mm) Pole Saw Bar

• 1 x 10" (254 mm) Pole Saw Chain

• 3 x Attachment Hangers

• 1 x Shoulder Strap

• 1 x 76 ml Chain Oil

• 1 x Pole Saw Scabbard

• 1 x Hedge Trimmer Blade Sheath

• 1 x Scrench

• 1 x M12-M18FC M12™ & M18™ Rapid Charger

• 2 x M18 FB8 M18™ REDLITHIUM™ FORGE™ 8.0AH Batteries

Designed to meet the needs of landscape maintenance professionals, the M18 FUEL™ QUIK-LOK™ Outdoor Power Head provides users with maximum power to complete demanding applications, and reaches full throttle in under 1 second. The split boom system allows users the ability and flexibility to quickly swap out any of the 13 attachments for use on a single power head, delivering ultimate versatility and a lower cost of ownership. The POWERSTATE™ Brushless Motor delivers the power to maintain speed in demanding applications without bogging down, with the motor positioned in the rear of the power head to provide the best combination of power, balance, and manoeuvrability across a range of diverse applications. The motor also has an advanced air-cooling system to sustain demanding applications for longer, increasing user productivity. REDLINK™ PLUS intelligence maximises performance while protecting from overload, overheating, and over-discharge. The advanced electronic package also delivers instant throttle response, 3 speeds, and a variable speed trigger for complete control of the power at hand. The Power Head is optimised for maximum performance when paired with M18™ REDLITHIUM™ FORGE™ batteries (not included)

• Compatible with all QUIK-LOK™ attachments

• QUIK-LOK™ Coupler attachment capable

• POWERSTATE Brushless Motor delivers sustained power under load without bogging down, powering through the most demanding applications

• Full throttle under 1 second

• Features a balanced design for ultimate control of the tool when using any QUIK-LOK™ attachment

• 3 speed settings and variable speed trigger provide ultimate control in application

• No pull starts or petrol headaches

• Lower cost of ownership compared to investing in individual, dedicated tools

• Advanced air cooling system sustains use in demanding applications

• Optimised for best performance with M18™ REDLITHIUM™ FORGE™ batteries

• Platform: M18 FUEL™

• RPM: 0 -6,440 / 0 - 7,560 / 0 - 8,680

• Connection: QUIK-LOK™

• Variable Speed: Yes, Trigger Control

• Length: 885 mm

• Weight: 2.9 kg

Designed to meet the needs of landscape maintenance professionals, the Milwaukee M18 FUEL Pole Saw Attachment, M18FOPH-CSA, gives you the maximum power to cut hardwood branches. When attached to the M18 FUEL Outdoor Power Head (sold separately) and powered by M18™ REDLITHIUM-ION HD9.0 Battery (sold separately), the system reaches full throttle in under 1 second, and delivers up to 150 cuts per charge. The QUIK-LOK Attachments feature protected drive shafts for increased durability against drops and storage elements. The M18 FUEL Pole Saw Attachment is part of the M18 FUEL Outdoor Power Equipment Attachment System that provides landscape maintenance professionals the ability to quickly swap out attachments on a single power head, delivering ultimate versatility and lower cost of ownership.

• Power to cut through demanding applications

• Full throttle under 1 second

• QUIK-LOK Connection capable for versatility of completing a range of applications

• Up to 150 cuts per charge

• 10" Oregon Bar & Chain

• Branch hook For added cutting leverage and branch removal

• Easy access chain tensioner for quick adjustments to chain tension

• Automatic oiler for proper chain lubrication and increased productivity & Translucent reservoir for clear visibility to oil levels

• Padded grip for optimal hand placement and delivers increased comfort

• Protected Drive Shaft increases durability against drops and storage elements

• Alignment Label Indicates when attachment is fully inserted into M18 FUEL Power Head

• Milwaukee M18FOPH-0 18V Li-ion Cordless Fuel Outdoor Multi-Function Power Head - Tool Only

• Milwaukee M18FOPHLTKIT-0 18V Li-ion Cordless Fuel Outdoor Multi-Function Power Head with Line Trimmer Attachment - Tool Only

• No load speed: Speed 1: 0 - 3700rpm, Speed 2: 0 - 4600rpm

• Bar length: 254mm

• Chain gauge: 0.043" (1.1mm)

• Chain pitch: 3/8" (9.5mm) Low profile

• Dimensions (L x W x H): 1348mm x 173mm x 103mm

• Weight: 1.83kg

The Milwaukee M18 FUEL QUIK-LOK Articulating Hedge Trimmer Attachment is powered by the M18 FUEL Power Head (sold separately) w/ QUIK-LOK and is compatible with the Milwaukee QUIK-LOK Attachment System. The attachment's articulating mechanism allows for 270 degree rotation of the blade set, which gives you 13 operating positions and 1 storage position. The hedge trimmer attachment boasts a 508mm (20") blade with 25mm cut capacity allowing you to clear more material in a single pass. The hedge trimmer attachment includes a tip guard to prevent damage to the blade and surrounding work area, as well as a padded grip for optimal hand placement and increased comfort and protected drive shafts for increased durability against drops and storage elements. This hedge trimmer attachment also features optimised gearing to manage the cordless M18 FUEL Power Head RPM output specifically for hedge trimming applications.

• Compatible with the M18 FUEL Power Head w/ QUIK-LOK

• Articulating Head Design: Adjustment handle and sliding adjustment collar for 270 degree blade set rotation, delivering 13 operating positions and 1 storage position

• Tip Guard: Prevents damage to blade and surrounding work area

• Padded Grip: For optimal hand placement and increased comfort

• 508mm Blade

• 25mm Cut Capacity

• Milwaukee M18FOPH-0 18V Li-ion Cordless Fuel Outdoor Multi-Function Power Head - Tool Only

• Milwaukee M18FOPHLTKIT-0 18V Li-ion Cordless Fuel Outdoor Multi-Function Power Head with Line Trimmer Attachment - Tool Only

• No load speed: Speed 1: 0 - 2800spm, Speed 2: 0 - 3500spm

• Blade Length: 508mm

• Cut Capacity: 25mm

• Length: 152.4cm (60")

• Dimensions (L x W x H): 1125mm x 130m x 197mm

• Weight: 3.7kg

The Milwaukee M18 FUEL Attachment Extension, M18FOPH-EXA, is powered by the M18 FUEL Outdoor Power Head (sold separately) and is compatible with our M18 FUEL 10" Pole Saw and Hedge Trimmer Attachments (sold separately). The extension attachment gives you 102cm of additional length for applications requiring further reach. The attachment includes a padded grip giving you increased comfort. The extension's QUIK-LOK Coupler has a positive locking mechanism and alignment guide allowing you to quickly make attachment changes. The QUIK-LOK Attachments feature protected drive shafts for increased durability against drops and storage elements.

• Compatible with M18 FUEL Outdoor Power Head, 10" Pole Saw and Hedge Trimmer Attachments (sold separately)

• Delivers 102cm of additional reach

• QUIK-LOK Coupler - positive-locking mechanism and alignment guide for fast, tool free attachment changes

• Protected drive-shaft

• Padded Grip for optimal hand placement and increased comfort

• Milwaukee M18FOPH-0 18V Li-ion Cordless Fuel Outdoor Multi-Function Power Head - Tool Only

• Milwaukee M18FOPHLTKIT-0 18V Li-ion Cordless Fuel Outdoor Multi-Function Power Head with Line Trimmer Attachment - Tool Only

• Dimensions (L x W x H):1083mm x 105mm x 75mm

• Weight: 0.89kg

The M18™ REDLITHIUM™ FORGE™ 8.0Ah Battery delivers HIGH OUTPUT™ 12.0Ah power in a smaller size, with high-speed cooling when paired with M18TM chargers with COOL-CYCLE™ functionality for less downtime in high-demand applications, 35 minute supercharge to 80%, and the longest life vs standard REDLITHIUM™ batteries. REDLITHIUM™ FORGE™ are Milwaukee's most powerful, fastest charging, and longest life batteries. The REDLTIHIUM™ FORGE™ 8.0Ah delivers 8 amp hours of runtime, but with the same power as the M18™ REDLITHIUM™ HIGH OUTPUT™ 12.0Ah Battery in a smaller size and lighter weight design, delivering fast application speeds in demanding applications. The M18™ REDLITHIUM™ FORGE™ 8.0Ah Battery is COOL-CYCLE™ capable with this Active Cooling System providing high-speed cooling for maximising efficiency for lessdowntime. An upgraded venting design maximises active cooling, while a patented ingress coating provides a protection barrier against water and debris. When paired with the M18™ Dual Bay Super Charger (M18DBSC), the M18FB8 charges to 80% in 35 minutes, and 100% in 45 minutes, allowing users to maximise productivity. This lithium-ion battery has the longest life, the most recharges, and maintains ultimate performance over the life of the battery. The battery is also designed with a resistant housing for increased protection against exposure to common oils, greases, and solvents. Built- in REDLINK™ Intelligence protects the battery from overloads, preventing users from damaging their cordless power tools in heavy-duty situations. The REDLITHIUM™ FORGE™ 8.0Ah battery is fully compatible with 250 M18™ solutions.

• REDLITHIUM™ FORGE™ provides the most power, faster charging, and longer life vs standard REDLITHIUM™ batteries

• Delivers HIGH OUTPUT™ 12.0Ah power in a smaller size and lighter weight design

• COOL--CYCLE™ Active Cooling System provides high-speed cooling for less downtime, when paired with COOL-CYCLE™ capable chargers

• 35 minute supercharge to 80% and 45 minutes supercharge to 100% when charging one M18FB8 using the M18™ Dual Bay Super Charger (M18DBSC)

• Longest life for the most recharges and best performance over the life of the pack

• Patented ingress coating provides increased protection to maximise active cooling through an upgraded venting design

• Resistant housing designed to provide increased protection against exposure to common oils, greases, and solvents

• Enhanced onboard fuel gauge with rubber overmold and improved readability in direct sunlight.

• REDLINK™ battery circuitry provides optimised performance and overload protection using total system communication between tool, battery and charger

• Fully compatible with the M18™ system, featuring 250+ tools

• Voltage: 18V

• Platform: M18™

• Battery Type: FORGE™

• Amp Hour: 8.0Ah

• 80% Charge: 35 minutes (with M18DBSC)

• 100% Charge: 45 minutes (with M18DBSC)

• COOL-CYCLE Capable: Yes

• Fuel Gauge: 4 LEDs

• Dimensions (L x W x H): 135mm x 86mm x 89mm

• Weight: 1.1kg

Once again, Milwaukee is on the ball for providing the fastest charging solutions for tradies. With the ever-growing demand to charge batteries in both voltages, the new and improved multi voltage charger, M12-18FC, can sequencial charge a 12V or 18V battery up to 40% faster, increasing your productivity on the worksite.

• Charges all Milwaukee batteries up to 40% faster

• Charges all M12 and M18 batteries

• Sequencial charging

• REDLINK intelligence communicates directly with the battery

• REDLINK monitors cell voltage and temperature

• REDLINK charges to optimise the performance, protect and extend the life of the battery

• Voltage: 12V & 18V

• Battery type: Li-ion

• Weight: 0.77kg

• 2.0Ah: 26 minutes

• 4.0Ah: 47 minutes

• 5.0Ah: 59 minutes

• 6.0Ah: 75 minutes
