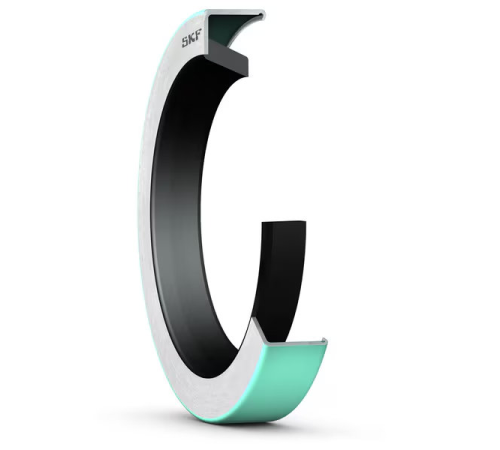

SEAL 0.750-0.999-0.125 SINGLE LIP GRS - HM14 R NBR STR LIP/RADIAL LIP
Suppier Part Number
C4719
AUD 22.95
In stock
Click & Collect OR in-store Pickup available
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HM14 sealsare designed with a sealant coated metal case. They have a conventional single sealing lip made
of elastomer. Typical applications include grease lubricated agriculture machinery.
Maximise the exclusion of contamination
Accommodate low speed
Easy installation
Dimensions:
- Shaft diameter: 19.05 mm
- Housing bore diameter: 25.37 mm
- Seal width: 3.175 mm
Performance:
- Limiting speed: 3 940 r/min
- Maximum operating temperature: 100 degree C
- Minimum operating temperature: -40 degree C
- Permissible circumferential speed: 3.93 m/s
- Rotational speed: 3 940 r/min
Properties:
- Design: HM14
- Auxiliary lip: No
- Sealing lip material: Nitrile rubber (NBR)
- Type of outside diameter: Metal-cased
- Unit system: Inch
