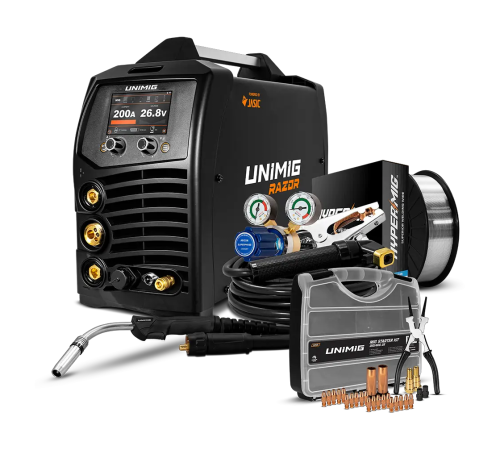

UNIMIG RAZOR MULTI 200 PULSE BUNDLE

The latest innovation in pulse MIG, this machine comes filled with revolutionary technology. Single & Double Pulse MIG 100+ Synergic Programs 5" Touch LCD Screen Digital MIG Torch Hot Start & Crater Fill 4 Geared Wire Drive 100 Job Memory.

• RAZOR 200 PULSE WELDER (U11003K)

• WELDING HELMET PROFESSIONAL SERIES DEMON (U21018)

• ROGUE HEAVY DUTY WELDING GLOVES (UMWG8)

• Less spatter. Lower heat. Smoother results. Streamline your welds with the single and double pulse functions.

• 100+ Smart-Set MIG Progams

• Hot Start: Get the smoothest arc start possible. The Hot Start function gives a boost of current at the beginning of your weld, eliminating any issues with starting on cold metal, letting you weld on thicker materials and making welding aluminium even easier.

• Crater Fill: End your welds as strong as they started. Crater Fill ramps your welding current and voltage down at the end of a weld, filling it in at a lower amperage, eliminating craters and pinholes.

• Digital Control Torch: Our digital MIG torch allows you to adjust your settings on the fly. Change the amps, current and voltage at the touch of a torch button.

• High-Frequency TIG Start

• Power Factor Correction (PFC): Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.

• Advanced IGBT Inverter Technology: Our IGBT inverter platform delivers higher efficiency, stronger arc stability and more consistent power delivery. It runs cooler, responds faster to changes in arc demand and provides the reliability needed for modern welding applications.

• 4 Geared Wire Feed System: Built for stability and control. The four geared mechanism increases drive force and keeps wire delivery steady, even when you are using extended torch lengths.

• Accessories: Spool Gun, Push-Pull Gun, TIG Torch & Foot Pedal

• Arc Force: The Arc Force feature helps to keep the arc stabilised throughout the weld, by increasing or decreasing the peak current to compensate for your arc length, preventing the arc from cutting out or the electrode from sticking.

• Anti-Stick: The Anti Stick feature, which is always on, prevents your electrode from sticking to your workpiece. When the machine detects sticking, the current will drop significantly, so the electrode can be removed.

• Job Memory

• Inductance Control

• Generator Compatible

• Burnback Adjustment

• Primary Input Voltage: 240V Single-Phase

• Ieff (A): 12.2

• Open Circuit Voltage (OCV): 77.0

• Protection Class: IP23S

• Minimum Generator (kVA): 11.0

• Standard: AS 60974.1

• Weight (kg): 17.00

• Suitable Materials: MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze; MMA: Mild Steel, Stainless Steel, Cast Iron; TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze

• Supply Plug: 15A

• Imax (A): 31.5

• Open Circuit Voltage with VRD Active (V): 14.3

• Insulation Class: H

• Dinse Connector: 35/50

• Warranty: 3 Years

• Dimensions (LxWxH): 560 x 220 x 415mm

• MIG Current Range: 40-200A

• MIG Wire Sizes: 0.6-1.2mm

• Drive Roller Size: 30/22

• MIG Duty Cycle @ 40 degree C: 15% @ 200A, 60% @ 101A, 100% @ 78A

• MIG Welding Thickness Range: 1-10mm

• MIG Wire Spool Sizes: 1kg (D100), 5kg (D200)

• TIG Ignition Type: DC High-Frequency TIG, DC Lift Arc

• TIG Duty Cycle @ 40 degree C: 20% @ 200A, 60% @ 116A, 100% @ 90A

• TIG Current Range: 5-200A

• TIG Welding Thickness Range: 1-8mm

• MMA Current Range: 20-180A

• MMA Electrode Range: 2.5-4.0mm

• MMA Duty Cycle @ 40 degree C: 15% @ 180A, 60% @ 91A, 100% @ 70A

• MMA Welding Thickness Range: 2-12mm
