WELDCLASS 2-EHF700BB/32 ELECTRODES-H/FAC S-700B.B 3.2MM 5KG
Click & Collect OR in-store Pickup available

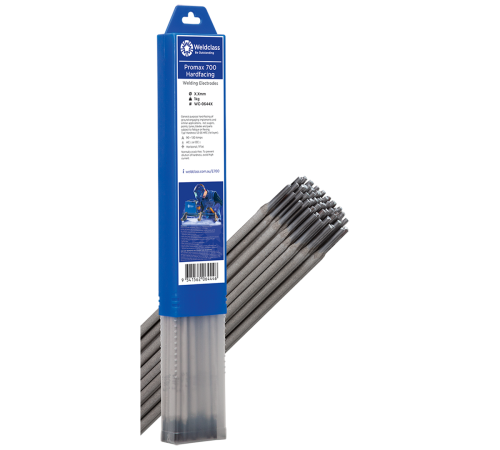

WELDCLASS 2-EHF700BB/32 Electrodes - Hardfacing PROMAX 700
700 series hardfacing welding rods for general hard-facing of ground-engaging implements and similar applications. Good abrasion resistance with moderate-to-high impact strength, typical hardness 53-56 HRC. A tough weld deposit also makes this electrode suitable for parts subject to fatigue or flexing in service. Suitable for a wide range of applications including the surfacing of post hole augers, agricultural points, shares and tynes, grader and cultivator blades, etc. Supplied in 1kg re-usable convenience pack to keep electrodes in good condition. For higher abrasion resistance and longer wear life, we recommend Platinum 943 series electrodes.
KEY FEATURES:
APPLICATION INFO:
OPERATING INFO:
Polarity: DC+ or AC+ (electrode +)
Typical current range: 3.2mm 90-130A / 4.0mm 140-180A
Positions: Horizonal / Flat
Minimum recommended OCV (open circuit voltage): 45V
To prevent dilution of hardness, avoid high current
OTHER INFO:
Weld deposit is NOT machineable, unless with prior heat treatment
Weld deposit IS grind-able
Chromium content (Cr) 8%
700 series hardfacing welding rods for general hard-facing of ground-engaging implements and similar applications. Good abrasion resistance with moderate-to-high impact strength, typical hardness 53-56 HRC. A tough weld deposit also makes this electrode suitable for parts subject to fatigue or flexing in service. Suitable for a wide range of applications including the surfacing of post hole augers, agricultural points, shares and tynes, grader and cultivator blades, etc. Supplied in 1kg re-usable convenience pack to keep electrodes in good condition. For higher abrasion resistance and longer wear life, we recommend Platinum 943 series electrodes.
KEY FEATURES:
- Ideal for 'general purpose' hard-facing of earthmoving & ground-engaging implements
- Good abrasion resistance and moderate impact strength
- Typical hardness 53-56 HRC
- Tough weld deposit, suitable for parts subject to fatigue or flexing in service
- Free from relief checks (will not form cracks after welding)
- Easy to use & suitable for use with low OCV (open circuit voltage) welding machines (minimum OCV 45V)
APPLICATION INFO:
- Wear Resistant, High Carbon Martensitic Steel Deposit
- Suitable for a wide range of applications including the surfacing of post hole augers, agricultural points, shares and tynes, grader and cultivator blades, etc
- NOT recommended for: metal-to-metal wear
OPERATING INFO:
Polarity: DC+ or AC+ (electrode +)
Typical current range: 3.2mm 90-130A / 4.0mm 140-180A
Positions: Horizonal / Flat
Minimum recommended OCV (open circuit voltage): 45V
To prevent dilution of hardness, avoid high current
OTHER INFO:
Weld deposit is NOT machineable, unless with prior heat treatment
Weld deposit IS grind-able
Chromium content (Cr) 8%
Brand | Weldclass |
---|
