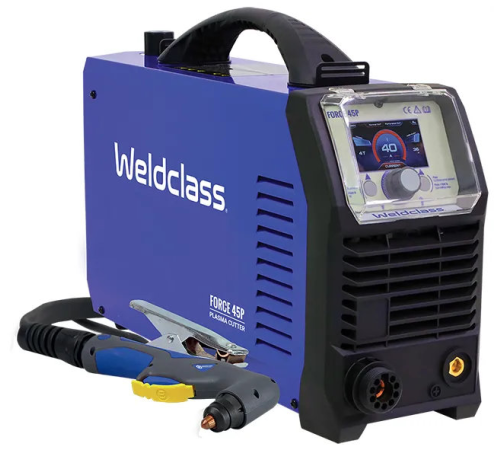

WELDCLASS CF-06176 PLASMA CUTTER FORCE 45P PFC
Suppier Part Number
CF-06176
AUD 1,499.95
Out of stock
Click & Collect OR in-store Pickup available
With a cut capacity of 20mm (clean cutting of mild steel), severance capacity of 25mm, and 45% duty cycle at maximum output, the Force 45P* is one of the highest performing single-phase plasma cutters on the market. Weighing only 8kg and fitted with a 15A 240V plug, it's also super portable and versatile. PFC technology means the 45P is extremely power efficient, delivering higher duty cycle for longer cuts and higher productivity, even on heavier section material. With PFC, the 45P can be used on long extension leads (up to 100m) and is a great choice for operation on generator power, where required. Features a very high-quality 6m torch with 'Euro' style connection, Air regulator with nitto fitting, shoulder strap & much more! For maximum parts life and cutting performance, we highly recommend the optional Platinum Z-20 Air Filter/ Dryer.
FUNCTIONS:
- Plasma Cutter
AT A GLANCE:
- 40A @ 45% max output
- Clean Cut up to 20mm mild steel, 18mm stainless steel & 14mm aluminium
- Severance Cut up to 25mm mild steel, 22mm stainless steel & 20mm aluminium
- Fitted with 15A 240V plug
KEY FEATURES:
- Weighs only 8kg - compact, robust & lightweight
- Power Factor Correction (PFC) - reduced power draw, increased duty-cycle, ideal for long leads & generators
- High-Quality Plasma Torch with Euro Connection
- Reliable Pilot Arc Ignition - non-HF avoids EMF interference
- Generator Friendly - min 8kva, ideal 10+kva
- Intelligent Protection & Warning System - prevents costly torch damage
- Stressed-Tested - to 440V & over-specified componentry for reliability
- Perforated Plate / Expanded Mesh Cutting Mode
INCLUDES:
- Plasma Torch 6m with Torch Parts Kit
- Air Regulator with filter & Nitto style air fitting
- Earth Lead 4m
- Shoulder Strap
- Cable Strap
- Long Power Input Lead 3m
COMMON SPARE PARTS:
- Torch Consumable Spares (XTP-40/60 Torch)
- PLATINUM Z-20 High-Performance Air Filter (Highly Recommended for optimum cutting performance and longer parts life)
- T100 Welding Trolley (part no WC-06235)
AIR SUPPLY REQUIREMENTS:
- Air Compressor capacity: Min 120L/min (4.5cfm) Free Air Delivery
*Standard warranty 2 years, with extended 7-year warranty available if registered online after purchase, click here for details.*
