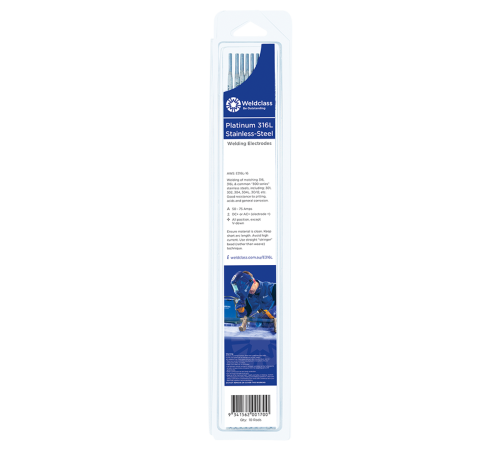

WELDCLASS P2-316L26 ELECTRODES STAINLESS-STEEL 316L 2.6MM PK 10 RODS

WELDCLASS P2-316L26 Electrodes - Stainless-Steel PLATINUM 316L

316L series Stainless-Steel welding rods for general purpose welding of matching 316, 316L & other common stainless steels, including; 300 series, 301, 302, 304, 304L, 3Cr12, 409, 444. All-positional (except vertical-down), smooth arc, low spatter, excellent slag control/detachability and high quality weld appearance. Classification: AWS E316L-16.
Available in 1kg re-usable packs & blister/handy packs, in 2.0mm, 2.6mm or 3.2mm.

KEY FEATURES:

• For general purpose welding of common, matching stainless steels


• Good resistance to pitting, acids and general corrosion

• All positional, except vertical-down

• Smooth arc, low spatter, excellent slag control/detachability and high quality weld appearance

• Easy to use & suitable for low OCV (open circuit voltage) welding machines (>45V)

APPLICATION INFO:

• Deposits Molybdenum bearing, 19% Cr / 12% Ni / 2.3% Mo filler metal to meet the requirements for welding AISI type 316 and 316L stainless steel in critical applications

• For welding of matching 316, 316L & other common stainless steels, including; 300 series (301, 302, 304, 304L, etc), and ferritic stainless steel alloys such as 409, 444 and 3Cr12

• Commonly used in; marine, wine making, dairy & similiar industries

OPERATING INFO:

• All welding positions, excluding vertical down

• Polarity: DC+ or AC+ (electrode +)

• Minimum recommended OCV (open circuit voltage): 45V

• Avoid high / excessive current

• Use straight "stringer" bead (rather than weave) technique

CLASSIFICATIONS:
AWS A5.4 E316L-16

TYPICAL PROPERTIES OF ALL WELD METAL:

• Tensile strength 610 Mpa (N\mm2)

• Yield strength 400 Mpa (N\mm2)

• Elongation 38%

• CVN Impact 75J @ -20c

• Composition %: C0.025 Mn0.70 Si0.70 Cr18.50 Ni12.0 Mo2.30

• Ferrite Number: 3.0-7.5 FN
