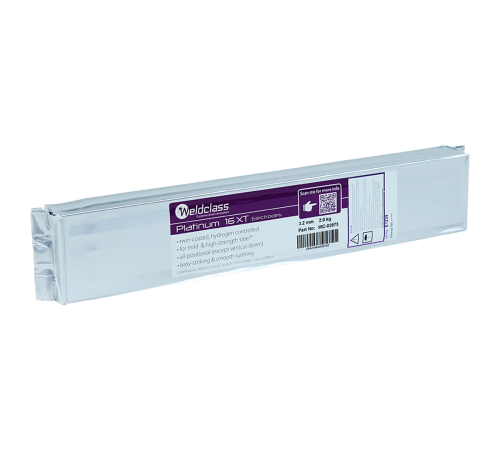

WELDCLASS WC-03975 Electrodes - PLATINUM 16XT (Hydrogen Controlled, Twin-Coated)
Hydrogen controlled ("low hydrogen") E7016 series stick welding electrodes with a special Twin Flux Coating for superior arc stability - in Foil-Sealed 2KG Vacuum Packs. Commonly used for mild or high strength steel, where the joint requires higher strength than regular "GP" electrodes, such as highly restrained joints or components subject to higher load stress. Also used as a buffer layer prior to hard facing. 16XT welding rods are All-Positional (except for vertical down), easy striking & smooth running, with low spatter & easy slag removal. Available in 2.5mm, 3.2mm & 4.0mm. AWS A5.1 E7016 H8 & AS/NZS 4855: B E4916 A U H10 classifications.
WHY CHOOSE WELDCLASS 16XT ELECTRODES ?
WHY IS IT IMPORANT TO AVOID MOISTURE ?
APPLICATION INFO:
CLASSIFICATIONS:
AWS A5.1 E7016 H10
AS/NZS 1553.1 (old) E4946
AS/NZS 4855: (new) B E4916 A U H10
EN ISO 2560-A: E 38 2B H10
TYPICAL MECHANICAL PROPERTIES
WHAT ELSE ?
Hydrogen controlled ("low hydrogen") E7016 series stick welding electrodes with a special Twin Flux Coating for superior arc stability - in Foil-Sealed 2KG Vacuum Packs. Commonly used for mild or high strength steel, where the joint requires higher strength than regular "GP" electrodes, such as highly restrained joints or components subject to higher load stress. Also used as a buffer layer prior to hard facing. 16XT welding rods are All-Positional (except for vertical down), easy striking & smooth running, with low spatter & easy slag removal. Available in 2.5mm, 3.2mm & 4.0mm. AWS A5.1 E7016 H8 & AS/NZS 4855: B E4916 A U H10 classifications.
WHY CHOOSE WELDCLASS 16XT ELECTRODES ?
- User Friendly: Very Smooth & Stable Arc, Easy Striking, Low Spatter, Easy Slag Removal
- Hydrogen controlled, for welding mild & high-strength (carbon-manganese) steels up to 510MPa
- All-Positional (except for vertical down) & excellent weld appearance
- 2KG VACUUM FOIL SEALED PACKS - REDUCES WASTE & MOISTURE EXPOSURE !
- Vacuum foil sealed packs keeps moisture out, right up to the point of use
- Smaller pack size reduces waste & minimises exposure to atmospheric moisture
WHY IS IT IMPORANT TO AVOID MOISTURE ?
- Air contains moisture (humidity) and any electrode exposed to air will absorb moisture
- This inceases hydrogen levels in the electrode (water 'H2O' contains hydrogen 'H')
- Increased hydrogen compromises the strength & mechanical properties of the weld
- Moisture can also negatively affect the arc characteristics of the electrode
APPLICATION INFO:
- Mining maintenance & fabrication
- Structural steel & site welding
- Rural maintenance
- Pipe construction
- Boilers & pressure vessels
- Build up or buffer layer prior to hard facing
- Single sided weld joints
CLASSIFICATIONS:
AWS A5.1 E7016 H10
AS/NZS 1553.1 (old) E4946
AS/NZS 4855: (new) B E4916 A U H10
EN ISO 2560-A: E 38 2B H10
TYPICAL MECHANICAL PROPERTIES
- Yield Strength: 470 MPa
- Tensile Strength: 540 MPa
- Elongation: 26%
- Impact Strength (CVN): 70J @ -20c / 50J @ -30c
WHAT ELSE ?
- Twin-coated
- Suitable for all DC or AC welding machines
| Brand | Weldclass |
|---|
