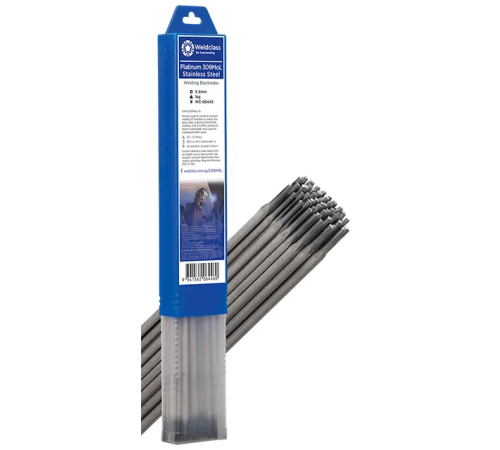

WELDCLASS WC-06446 ELECTRODES STAINLESS-STEEL PLATINUM 309MOL 2.6MM 1KG

Platinum 309MoL is a very versatile 309 series stainless-steel welding rod, suitable for strong, tough & corrosion resistant welding of; Dissimiliar steel to stainless, matching 309/309L stainless-steels, CrNi & CrNiMo stainless-steels and hard-to-weld steels. Addition of 2.5% molybdenum (Mo) makes this electrode popular for welding clad steel (such as ferritic steel and Cr-Mo steel clad with 316/316L stainless-steel). Also used for buffer layers. All-positional (except vertical-down), smooth arc, low spatter, excellent slag control/detachability and high quality weld appearance. Classification: AWS E309MoL-16.

• Strong, tough & corrosion resistant

• For: Dissimilar welding of stainless to mild steel, Matching 309/309L grades, CrNi & CrNiMo stainless and hard-to-weld steels

• All positional, except vertical-down

• Smooth arc, low spatter, excellent slag control/detachability and high quality weld appearance

• Convenient 1kg re-usable pack keeps electrodes in good condition

• Deposits 23% Cr / 12%Ni / 2.5% Mo austenitic stainless steel weld metal

• High alloy content and ferrite level enable the weld metal to tolerate dilution from dissimilar and difficult-to-weld materials without hot cracking or brittle structures

• Used for wide range 300 and 400 series stainless-steels to mild / low alloy steels

• Welding matching 309 and 309L base metals

• Addition of 2.5% molybdenum (Mo) to type 309 weld metal makes this electrode popular for side welding of clad steel, such as ferritic steel and Cr-Mo steel clad with 316/316L stainless-steel

• Also used for buffer layers

• All-positional (except vertical-down)

• Polarity: DC+ or AC+ (electrode +)

• Minimum recommended OCV (open circuit voltage): 70V

• Avoid high / excessive current

• Use straight "stringer" bead (rather than weave) technique

• AWS E309MoL-16

• AS/NZS 4854-B - E309LMoL-16

• Tensile strength 600 Mpa (N\mm2)

• Yield strength 400 Mpa (N\mm2)

• Elongation >30%

• Composition %: C0.03 Mn1.0 Si0.70 Cr23.0 Ni12.5 Mo2.5 FeBal'
