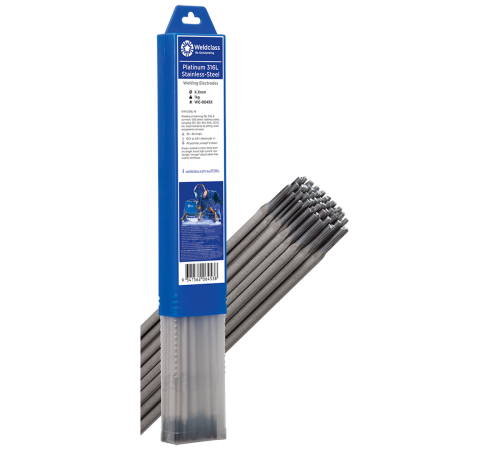

WELDCLASS WC-06454 ELECTRODES STAINLESS-STEEL PLATINUM 316L 2.6MM 1KG

Suppier Part Number

WC-06454

AUD 79.45

In stock

Click & Collect OR in-store Pickup available

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

WELDCLASS WC-06454 ELECTRODES STAINLESS-STEEL PLATINUM 316L 2.6MM 1KG

316L series Stainless-Steel welding rods for general purpose welding of matching 316, 316L & other common stainless steels, including; 300 series, 301, 302, 304, 304L, 3Cr12, 409, 444. All-positional (except vertical-down), smooth arc, low spatter, excellent slag control/detachability and high quality weld appearance. Classification: AWS E316L-16.

KEY FEATURES:

For general purpose welding of common, matching stainless steels

Good resistance to pitting, acids, and general corrosion

All positional, except vertical-down

Smooth arc, low spatter, excellent slag control/detachability, and high-quality weld appearance

Easy to use & suitable for low OCV (open circuit voltage) welding machines (>45V)

APPLICATION INFO:

Deposits Molybdenum bearing, 19% Cr / 12% Ni / 2.3% Mo filler metal to meet the requirements for welding AISI type 316 and 316L stainless steel in critical applications

For welding of matching 316, 316L & other common stainless steels, including; 300 series (301, 302, 304, 304L, etc), and ferritic stainless steel alloys such as 409, 444 and 3Cr12

Commonly used in; marine, wine making, dairy & similar industries

OPERATING INFO:

All welding positions, excluding vertical down

Polarity: DC+ or AC+ (electrode +)

Minimum recommended OCV (open circuit voltage): 45V

Avoid high / excessive current

Use straight "stringer" bead (rather than weave) technique

CLASSIFICATIONS:

AWS A5.4 E316L-16

TYPICAL PROPERTIES OF ALL WELD METAL:

Tensile strength 610 Mpa (N\mm2)

Yield strength 400 Mpa (N\mm2)

Elongation 38%

CVN Impact 75J @ -20c

Composition %: C0.025 Mn0.70 Si0.70 Cr18.50 Ni12.0 Mo2.30

Ferrite Number: 3.0-7.5 FN
