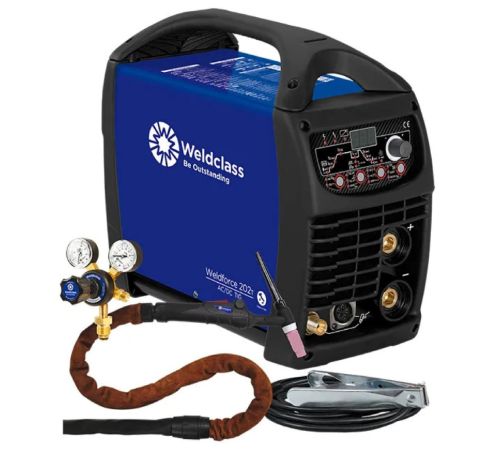

WELDCLASS WC-202T WELDER TIG AC/DC 202T ITALY - ULTRA

Everything you expect from a European made 200A AC/DC TIG and then some! Outstanding TIG welding results on aluminium, steel & stainless, very easy-to-use controls, Dual input modes to allow use on 10A plug (fitted) or 15A plug, 200A output, Stand-out features include: Easy-Pulse mode for beginners, Bi-Level manual toggle-from-torch mode, and unique SmartStart setting for very smooth arc ignition on aluminium. Plus European-made 8m #26 200A Super-Flex TIG torch with remote current adjustment, optional foot control & impressive Stick/MMA performance with VRD... and more!

• 200A max output (TIG)

• Weld with up to 3.2mm tungsten electrodes

• Fitted with 10A 240V plug*

• Comes standard with 8m high-quality European TIG torch

• TIG AC welding <200A in 15A mode, or <180A in 10A mode, of Aluminium and aluminium alloys up to 4-5mm max thickness

• TIG DC welding <200A in 15A mode, or <180A in 10A mode, of steel, stainless, copper & chrome molly up to 4-5mm max thickness

• Stick/MMA welding <160A in 15A mode, or <150A in 10A mode, with most common rods/electrodes (2.0-4.0mm)

• World-first 10-year warranty**

• Made in Italy to Weldclass specifications, in one of Europe's largest & most experienced welding machine manufacturing plants

• 30-day Money Back Guarantee***

• Dual Input Modes to allow use with either 10A plug (fitted) or 15A plug (optional)*

• Easy-to-use LCD Digital Controls with further settings info on top panel for quick reference

• European 8m #26 TIG torch with remote amp controls, flexi head, super-flex cable & leather cable cover

• Easy pulse mode for beginner operators

• Smart-Start ignition system for ultra smooth & reliable arc starting on Aluminium

• Bi-Level mode allows manual toggling between 2 set current levels from the torch

• Generator Compatible - min 7kva, ideal 10kva+

• Optional Foot Control (part no WC-06370)

• VRD function for safe & compliant Stick/MMA welding

• Compact, robust & portable (weighs 11kg)

• IP23 Protection - superior resistance to moisture & particles

• Arc Ignition: HF or Lift-Arc

• Slope Up/Down: 0-10s

• Pre & Post Gas: 0-10s

• Pulse modes: Standard & Easy (automatic arc settings for simple operation)

• Non-Pulse Modes: Standard & Bi-Level (allows manual toggle between 2 current levels from the torch)

• AC Frequency: 10-200Hz

• Pulse Frequency: 1–99Hz

• Pulse Balance/Width: 1-99%

• Non-Pulse Balance (AC Square-wave): -80% (max penetration) to +80% (max cleaning)

• AC Smart-Start: Adjusts energy boost level when starting arc in AC

• Trigger modes: 2T, 4T, Spot

• Spot Weld Timer Adjustment 0.01–10s

• MMA Hot-Start Adjustment 0-100%

• MMA Arc-Force Adjustment 0-100%

• TIG Torch #26 Flexi 8m (remote control)

• Gas Regulator (made in Europe)

• Earth Lead 4m

• Parts Kit & Tungstens - 1.6 & 2.4mm

• Foot Controller (# WC-06370)

• Stick welding lead (# WC-06233)

• T100 Welding Trolley (# WC-06235)

• TIG Torch Spares

• Tungsten Electrodes
