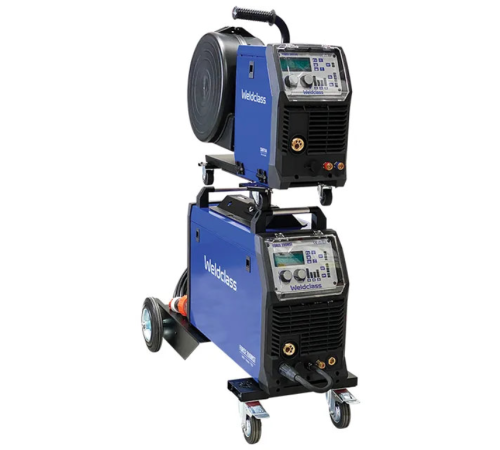

WELDCLASS WC-290MSTK3 WELDFORCE MIG / STICK / TIG & WELDER WIRE FEEDER PACKAGE

The Force 290MST* offers unbeatable grunt from single-phase power, ideal for use where where higher output is desired but 3-phase power supply is not available. With a maximum output of 290A @ 55% there's plenty of power to tackle production jobs with wires up to 1.2mm. Available as a stand-alone compact / portable machine, or can be optioned with the WF114 separate wire feeder unit either with initial purchase or as an add-on later if/when required. Features include: Easy-to-use controls (synergic or manual), 4-roll geared drive system, Job save, Spool Gun ready, and more.

• MIG (Gas / Gasless)

• Stick / MMA

• TIG (DC Lift-Arc)

• Industry-first 7-year warranty*

• Dual-Purpose Power Source Technology allows the 290MST to be used as a stand-alone compact / portable unit, or fitted with separate wire feeder unit

• Max MIG output 290A @ 55% duty cycle

• Dual Input Modes to allow use with either 240V 15A plug (fitted) or 240V 32A plug (optional)**

• Manual or Synergic MIG controls (enter material type & thickness and machine will set parameters automatically)

• Job Save - store custom settings for up to 20 jobs

• Geared 4-Roll Wire Drive System - for super reliable wire feeding

• Takes 5kg (D200mm) or 15kg (D300mm)spools

• Spool Gun Ready

• MIG functions & adjustments include: Inductance, Soft Start, Burnback, Pre-Gas Time, Post-Gas Time, 2T/4T Trigger, Spot/Stitch Time

• Stick/MMA functions & adjustments include: Hot-Start %, Arc-Force %

• TIG functions & adjustments include: Trigger & Remote Amperage Control on the the torch, Post-Gas Time, Slope-Up Time

• MIG welding <290A with solid mild steel (0.8-1.2mm), gasless flux-cored (0.8-1.2mm), stainless-steel (0.8-1.2mm), aluminium (0.9-1.2mm), & bronze/brazing (0.8-1.2mm) wires

• Stick/MMA welding <270A with most types of common electrodes (2.0-4.0mm), including steel, stainless-steel, hardfacing & more

• TIG welding <290A (DC lift-arc) of steel, stainless, copper & chrome molly up to 5-6mm max thickness (NOT suitable for TIG welding of aluminium)

• MIG Torch 4m BZL 36

• Earth Lead 4m

• Gas Regulator

• Driver Rollers for 0.9/1.2mm steel/solid wires

• Power Input Lead with heavy-duty 240V 15A plug fitted**

• SWF114 Wire Feeder

• 10m Interconnecting Cables

• Base/Wheel Kit
