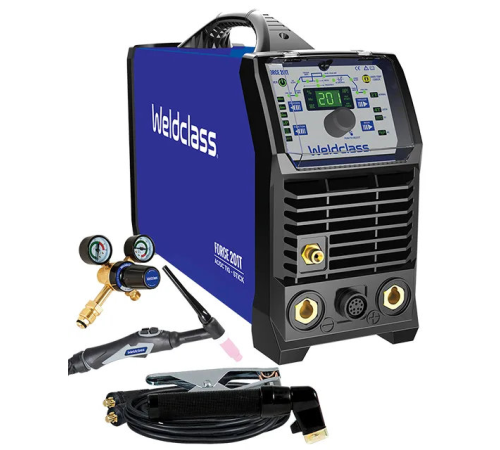

WELDCLASS WF-06172 WELDER TIG AC/DC WELDFORCE 201T

If you're looking for the best TIG welding results on Aluminium, Steel, Stainless and more... the 201T is here to help! An Impressive 200A @ 30% output (AC TIG), very compact & portable, weighing just 8kg. Controls include; choice of HF or Lift-Arc ignition, pulse frequency and width adjustment, slope-up & slope-down, pre-gas & post-gas, AC Square-wave & balance controls, remote current adjustment on TIG torch handle, optional foot control... plus impressive Stick/MMA performance with capacity to run up to 4mm electrodes. Comes with: 8m #26 (200A) TIG torch, gas regulator, 4m earth & stick leads, large carry bag that easily fits the machine and leads, shoulder strap, cable strap to keep your leads tidy and a long 3m power input lead with 15A plug fitted.

• TIG (AC/DC)

• Stick / MMA

• 200A max output (AC) @ 30% duty cycle

• Weld up to 3.2mm (max tungsten size)

• Fitted with 15A 240V plug

• Professional TIG welding of Aluminium, Mild Steel, Stainless & more

• Weighs only 8kg - compact, robust & lightweight

• LCD Digital Controls

• IP23 Protection - superior resistance to moisture & particles

• Generator Compatible - min 8kva, ideal 10kva+

• Stressed-Tested - to 440V & over-specified componentry for reliability

• Optional Foot Control (part no. WC-06236)

• 3 year warranty*

• HF or Lift Arc Ignition

• Pulse Frequency Adjustment 0.2 – 200Hz

• Pulse Width Adjustment

• Slope Up/Down Adjustments 0-10s

• Pre Gas Adjustment 0-2s

• Post-Gas Adjustment 0-10s

• AC Square-wave Adjustment

• AC Balance Adjustment: 25% (max penetration) to 50% (max cleaning)

• Spot Weld Timer Adjustment 0.1–10s

• TIG Torch #26 Flexi 8m (remote control)

• Earth Lead 4m

• Stick Lead 4m

• Gas Regulator

• Large Carry Bag

• Shoulder Strap

• Cable Strap

• Long Power Input Lead 3m

• Parts Kit & Tungstens - 1.6, 2.4, 3.2mm
